Ladle shroud manipulator from Berger Engineering

The ladle shroud manipulator for steel enables easy and safe handling of the ladle shroud for the connection between the ladle and the distributor.

The system is equipped with an argon gas supply system that can be connected to the pan cover.

Standardized main functions are:

  • Basic frame
  • Swiveling pillar
  • Manipulator arm
  • Fork holder
  • Cover gas connection and piping for Argon
  • Hydraulik unit
  • PLC standard: S7-1516

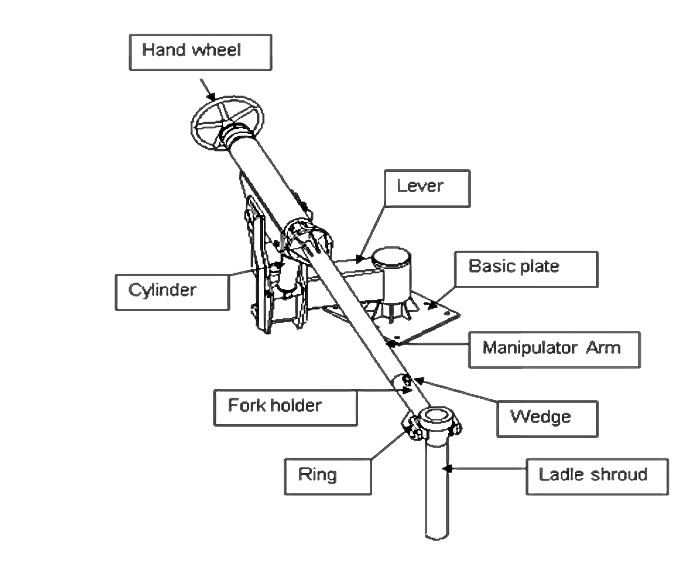

The manipulator arm is divided into three main parts (manipulator arm itself, front part, horseshoe). All of these parts are easily interchangeable. For safety reasons, the system is equipped with a hydraulic accumulator and safety valves to prevent pipes from bursting.

Standardized main functions
